Windows 95/98/ME Chebucto Plus Setup

          Here is the setup information for Windows 95, Windows 98 and Windows ME. You will need to have your Chebucto Plus password before proceeding. You may also require your Windows 95, 98 or ME CD-ROM (or disks). Clicking on a screen shot will show a larger version.



Windows 95/ 98/ ME Manual Setup

          Windows 98 and ME users may skip ahead. There are two versions of Windows 95: the original and OSR2, which Microsoft released in December 1996. If you purchased your computer or copy of Windows 95 before December 1996, you should have the original Windows 95. If you purchased your computer or copy of Windows 95 since December 1996, you probably have OSR2 (but may have purchased old stock with the original version).

          To determine which version of Windows 95 you have, follow these steps:

  1. While holding down the ALT key, double-click on the My Computer icon on your desktop
  2. In the System Properties dialog box if it lists your system as being Microsoft Windows 95 4.00.950 B, then you are running the OSR2 version, if it just lists Microsoft Windows 95 4.00.950 or 4.00.950 A, then you are running the original release of Windows 95.
  3. Click on OK button

          Setting up Windows 95/ 98/ ME to use Chebucto Plus is a four step process:

  1. Install Dial-Up Networking (if not already installed)
  2. Install TCP/IP Protocol (if not already installed)
  3. Define a Dial-Up Networking Connection
  4. Get Connected!



Step 1. Install Dial-Up Networking

1.0 Windows 98 and ME usually has Dial Up Networking already installed. To check on this, click the Start button, then go to Programs, Accessories, Communications and see if Dial Up Networking is there. If it is, you can skip ahead. In Windows 95, it's in Programs, Accessories.

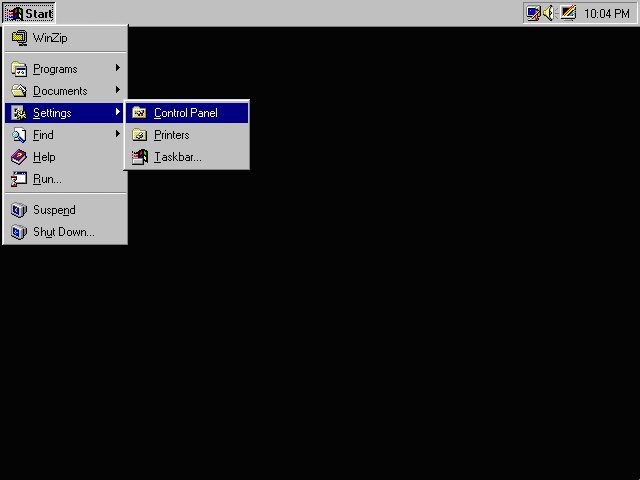

1.1 Click on the Start button

1.2 Highlight Settings and then click on Control Panel


Screen Shot #1

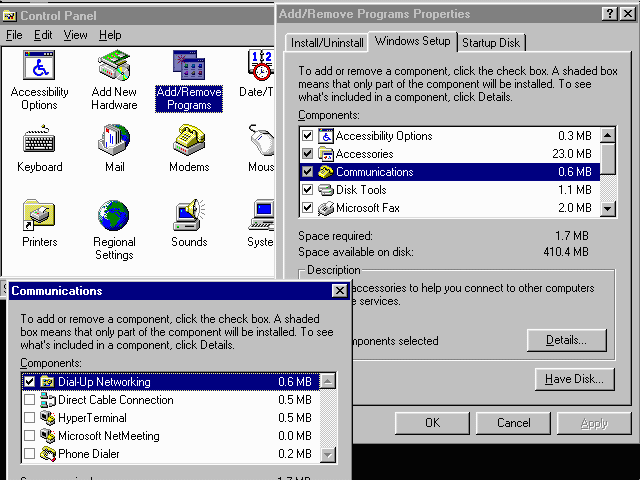

1.3 Double-click on Add/Remove Programs

1.4 Click on Windows Setup tab

1.5 Click on Communications in the Components list

1.6 Click on Details button

1.7 If Dial-Up Networking has a check mark beside it, click OKto close each of the open dialog boxes and skip steps 1.8 - 1.13, otherwise click on Dial-Up Networking check box in the Components list and continue with step 1.8.


Screen Shot #2

1.8 Click on OK button

1.9 Click on OK button in Add/Remove Programs dialog box

1.10 Insert the Windows CD-ROM (or disks if applicable) Note: If Windows 95 was pre-installed on your computer you will not need to insert the CD-ROM or disks.

1.11 When you receive the message indicating that you must identify your computer on the network, click on the OK button.

1.12 Type your last name in the Computer Name field, type Chebucto Plus in the Workgroup field and click on the Close button

1.13 Click on OK button in Dial-Up Networking Setup dialog box



Step 2. Install TCP/IP Protocol

2.1 Double-click on Network in Control Panel

2.2 You want to have three things showing here: Client for Microsoft Networks, Dial Up Adaptor, and TCP/IP. There may be more than these there, but you need these three to use our service. If these three things are already there, you can skip ahead.

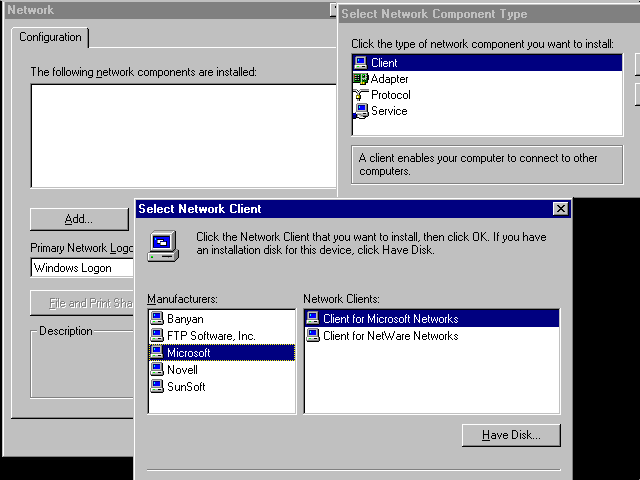

If Client for Microsoft Networks is not listed, click on Add then double click on Client then click on Microsoft then double click on Client for Microsoft Networks. In the Select Network Component Type window, double click on Client. In the Select Device window, double click on Microsoft in the Manufacturers list then double click on Dial-Up Adapter. You may be prompted for the Windows CD-ROM or disks.


Screen Shot #3

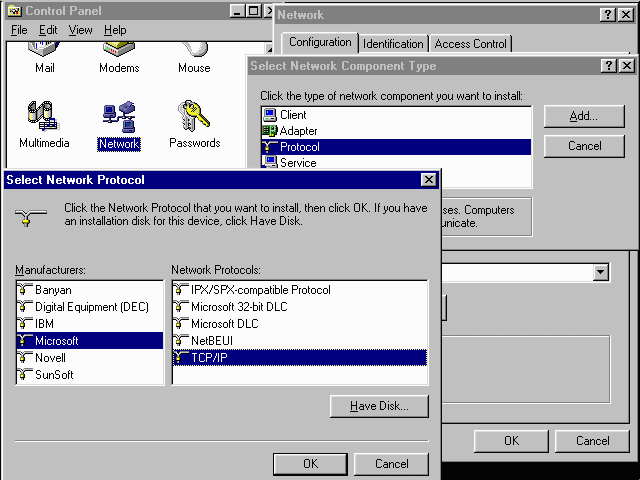

2.3 If TCP/IP is not listed, click on Add button, double click on Protocol,, click on Microsoft in the Manufacturers list, then double click on TCP/IP in the Network Protocols list. You may be prompted for the Windows CD-ROM or disks.


Screen Shot #4

2.4 Click on OK button in Network dialog box

2.5 Insert CD-ROM or disks as requested (if applicable)

2.6 Click on Yes button in Systems Settings Change dialog box to restart computer

2.7 When the system restarts and you are presented with an Enter Windows Password dialog box, enter your Windows system password.



Step 3. Define a Dial-Up Networking Connection

3.1 Click on Start button

3.2 Highlight Programs, Accessories. In Windows 98 and ME, it's Programs, Accessories, Communications.

3.3 Click on Dial-Up Networking

3.4 If you are running Windows 98, ME or the OSR2 release of Windows 95, a connection setup wizard will start and you can click on the Next button, otherwise double-click on Make New Connection

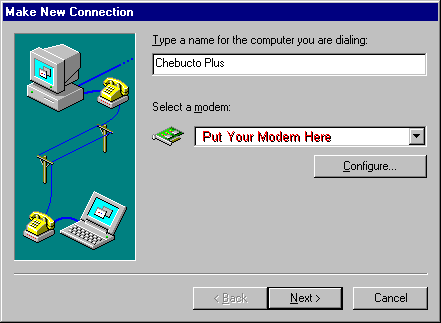

3.5 Type Chebucto Plus in the name field

3.6 Select a modem to use for the connection if it is not already there.


Screen Shot #5

3.7 Click the Next button

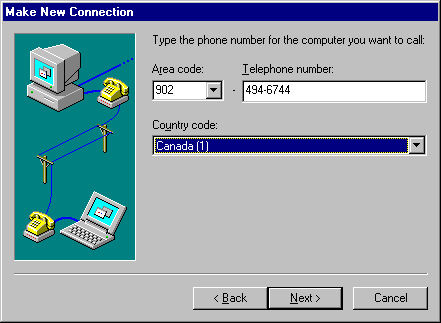

3.8 Type 494-6744 in the Telephone Number field

3.9 Choose Canada in the Country Code field


Screen Shot #6

3.10 Click on Next button

3.11 Click on Finish button

3.12 Click on Chebucto Plus and choose Properties from the File menu (or right click)

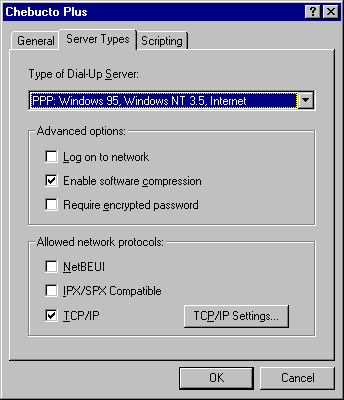

3.13 Click on Server Type button (or tab in OSR2 release) in Chebucto Plus dialog box

3.14 In Windows 95, select PPP: Windows 95, Windows NT 3.5, Internet in Type of Dial-Up Server field. In Windows 98, it's PPP: Internet, Windows NT Server, Windows 98 and it should already be showing.

3.15 If Log on to Network is selected, click on check box to de-select it (the check box should not have a check mark in it)

3.16 If Require Encrypted Passwords is selected, click on check box to de-select it (the check box should not have a check mark in it)

3.17 If NetBEUI is selected, click on check box to de-select it (the check box should not have a check mark in it)

3.18 If IPX/SPX Compatible is selected, click on check box to de-select it (the check box should not have a check mark in it)

3.19 If TCP/IP is not selected, click on check box to select it (the check box should have a check mark in it).


Screen Shot #7

3.20 Click on the TCP/IP Settings button. Make sure the Server assigned IP address box is checked.

3.21 Click on Specify name server addresses. In the Primary DNS window, type in: 192.75.95.129 and in the Secondary DNS window, type in: 192.75.95.88. Leave the Primary and Secondary WINS windows blank. Click on the OK button in this window.

3.21 Click on OK button in Chebucto Plus dialog box

3.22 Close Dial-Up Networking window



Step 4. Get Connected!

4.1 Click on Start button

4.2 Highlight Program, Accessories. In Windows 98, it's Programs, Accessories, Communications.

4.3 Click on Dial-Up Networking

4.4 Double-click on Chebucto Plus

4.5 Type your Chebucto Community Net Login ID in the User Name field.

4.6 Type your Chebucto Plus password (which was emailed to you) in the Password field. This is the only place where this password is used. Do not use the password from your text-based account (typed in when you first registered for the account) here.

4.7 Click on Connect button.

          Your connection will now be established. To close the connection simply double click on the Network icon in your system tray then click on the Disconnect button in the Connected to Chebucto Plus dialog box.

          Note: You could create a shortcut for the Chebucto Plus dialer on your desktop if you want to have faster access to it. Hold down the Ctrl key and click on the Chebucto Plus connection icon. While still holding down the Ctrl key and the mouse button, drag the icon over to your desktop and let go of the mouse button and Ctrl key. If prompted whether you want to make a shortcut to the dialer, answer yes.

Chebucto Plus Mail and News Settings:

  • SMTP Server = smtp.chebucto.ns.ca
  • POP3 Server = pop.chebucto.ns.ca
  • NNTP Server = news.dal.ca

          You should make http://plus.chebucto.ns.ca the default home page in your web browser as it has your session timer and other useful Chebucto Plus links and utilities. How you do this will vary from browser to browser; in Internet Explorer it will be under Options or Internet Options (depending on the version) and in Netscape Navigator it will be under Preferences or Options (depending upon the version).

          We would also recommend that you get a good anti-virus program for your computer and keep it updated. You can do a web search for anti-virus software.
